Censo charging instructions
Welcome to a Censo charging station! The instructions on our charging stations are often in Dutch, but don't worry because we explain everything here in English.
How to charge
Censo has different types of charging stations, but starting and stopping a charging session is the same everywhere.
Start charging session:
- Connect the charging cable to the charging point and then to your vehicle.
- Hold your charging card or charging key in front of the card reader (RFID) until you hear a signal to start the charging session.
Note: The card reader (RFID) is always located in a logical place on the charging station, and you can often immediately recognize it by the logo on the card reader. This logo varies, but is often similar to 🛜.
Stop charging session:
- Hold the charging card or charging key in front of the card reader to end the charging session.
- Unplug the charging cable from your vehicle and the charging point.
It's that simple, have a safe trip!
Below, we have explained the lights on the charging station for each type of charging station. It's nice to know, but not necessary. If you experience any malfunction, we are there for you. Call Censo 24/7: +31 (0)88 - 989 99 71

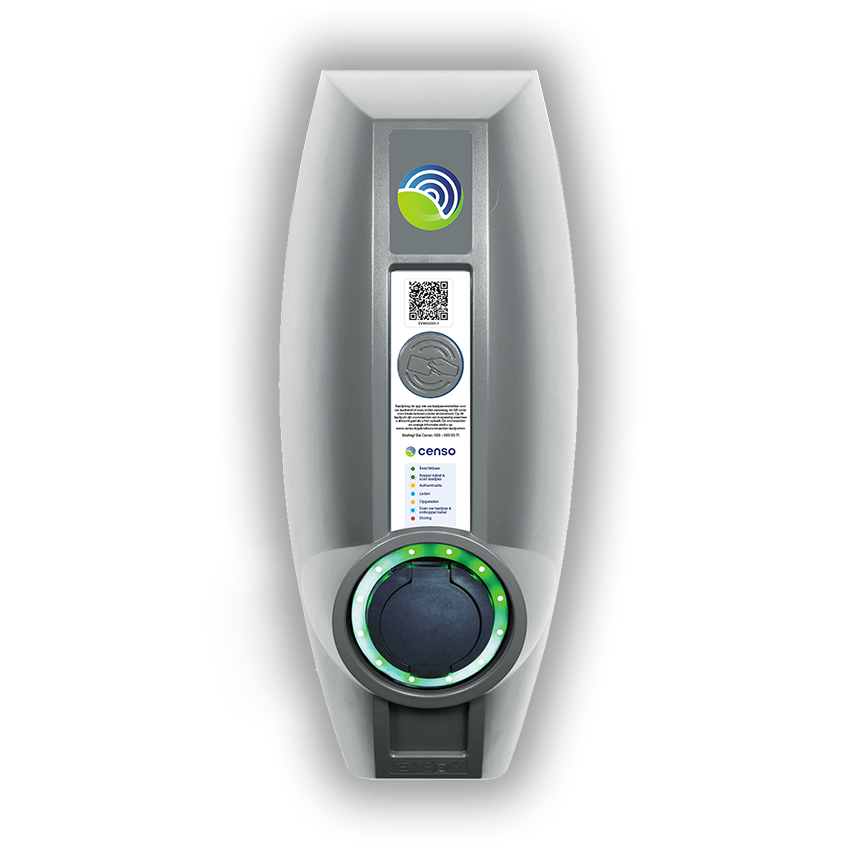

The colors of the LED light explained - EVBox
This charging station has two charging points and a light is visible around the socket of each charging point. The color of the light changes when starting and stopping the charging session and during the charging session itself. The light also indicates when there is a malfunction.
- green: charging point is available
- flashing green: vehicle connected and charging
- flashing yellow: authentication
- blue: charging
- yellow: charging session completed
- flashing blue: Scan your charging card/key and disconnect the cable
- red: malfunction

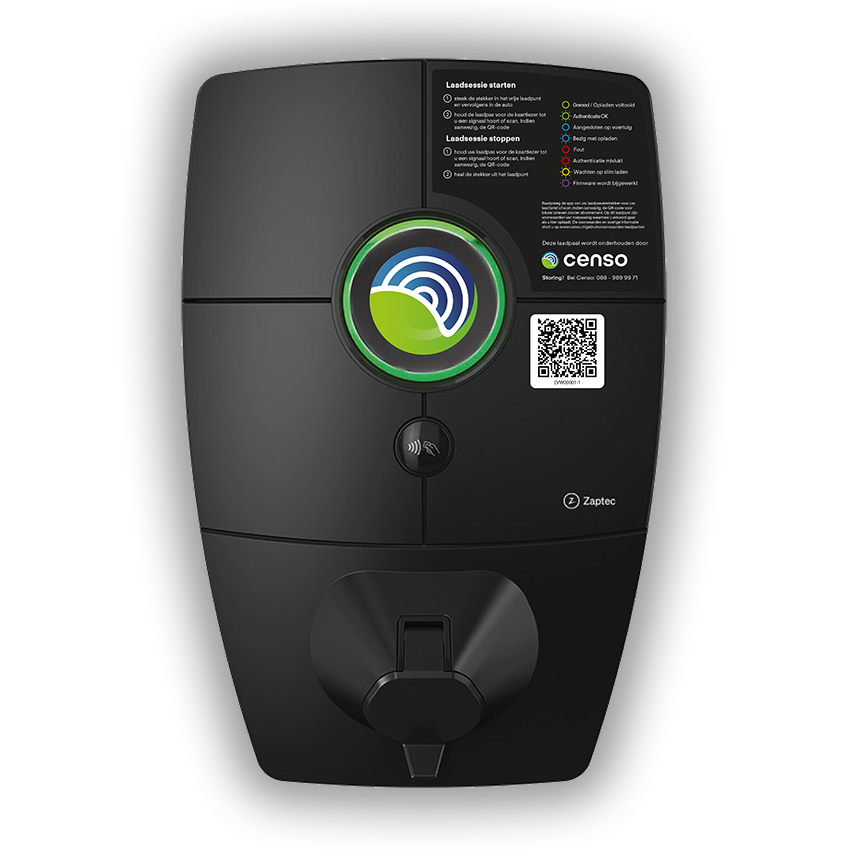

The colors of the LED light explained - Zaptec
This charging station has one charging point and a light is visible around the socket of the charging point. The color of the light changes when starting and stopping the charging session and during the charging session itself. The light also indicates when there is a malfunction.
- green: charging session completed
- flashing green: authentication OK
- blue: vehicle connected
- flashing blue: charging
- red: malfunction
- flashing red: authentication failed
- flashing yellow: waiting for smart charging
- flashing purple: updating firmware

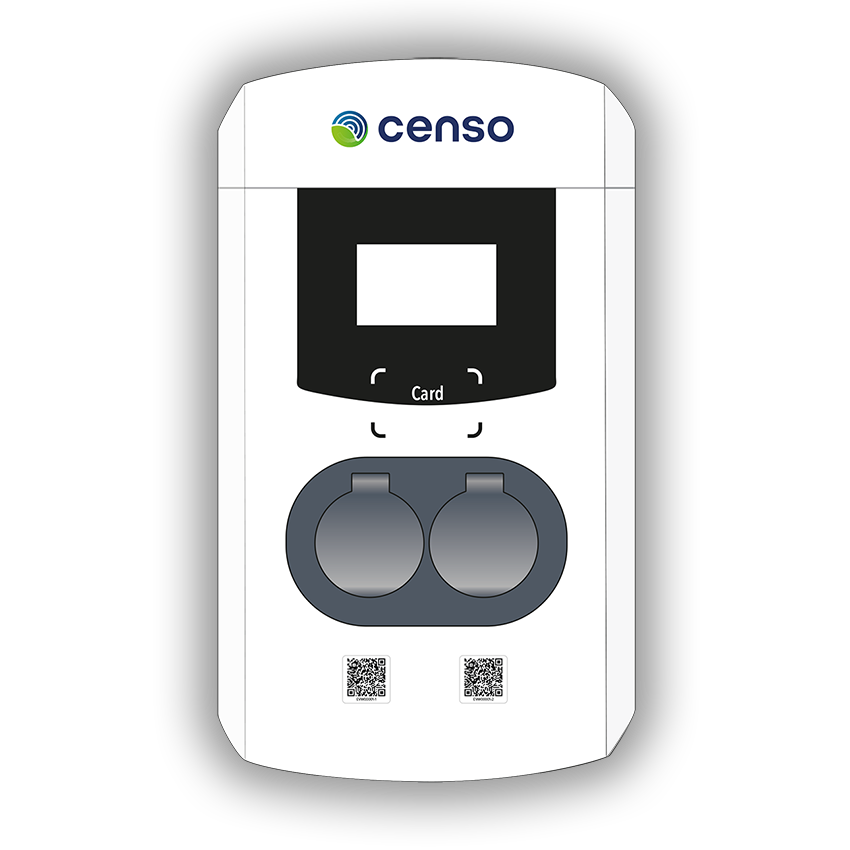

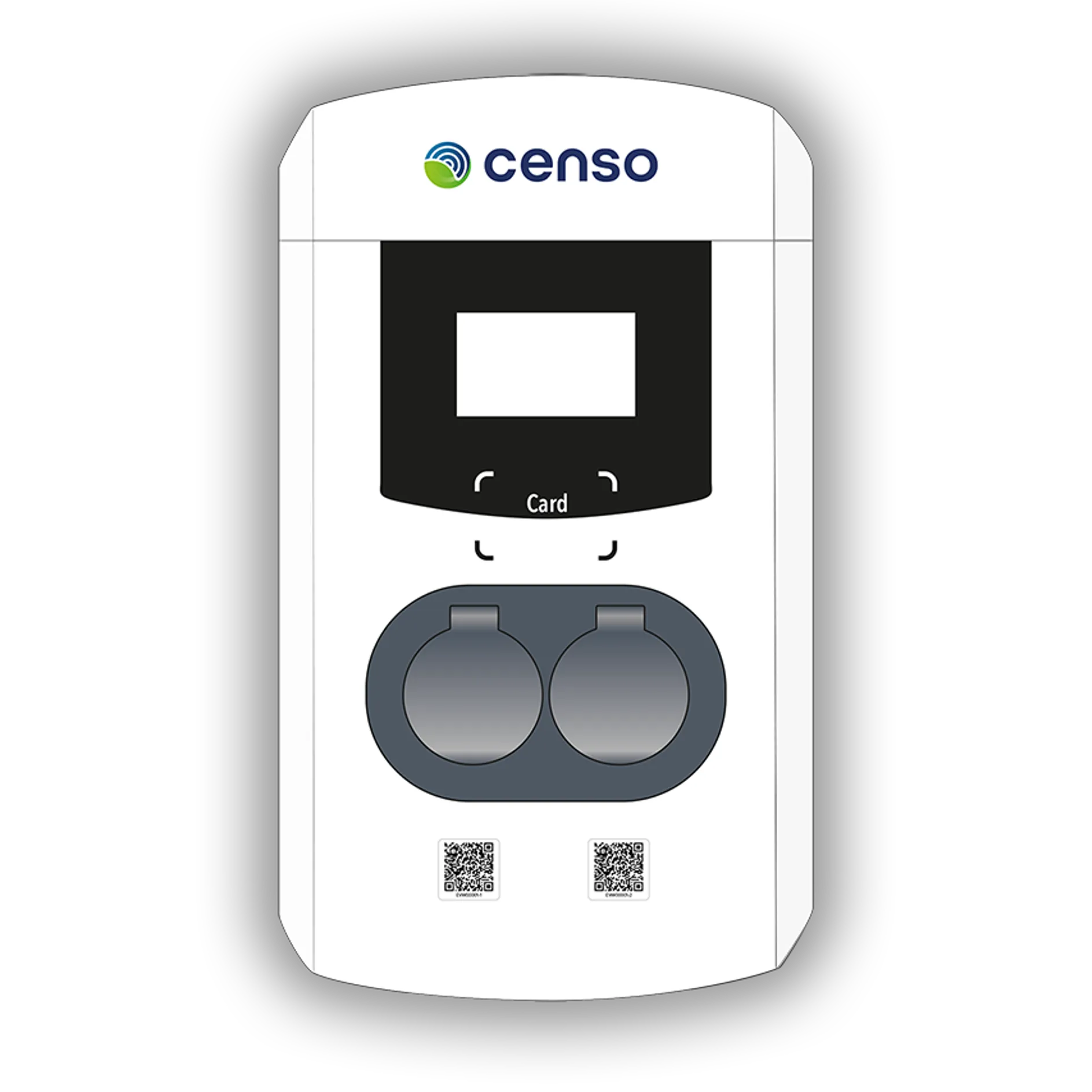

Alfen charge point
This charging station has two charging points and has a display that informs you about the status of the charging session.

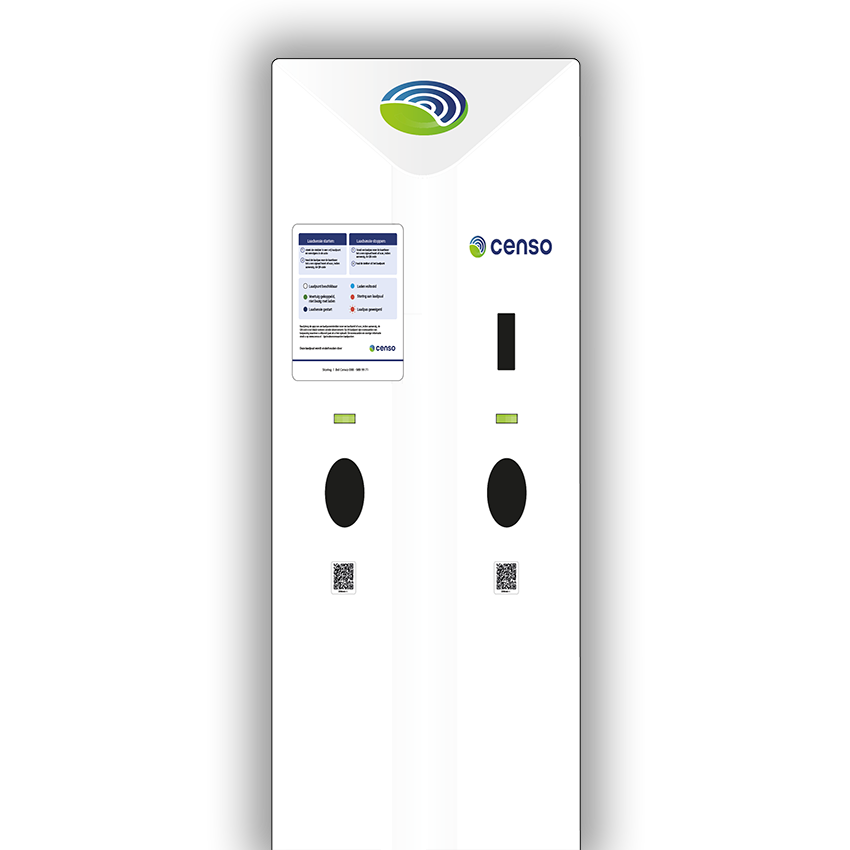

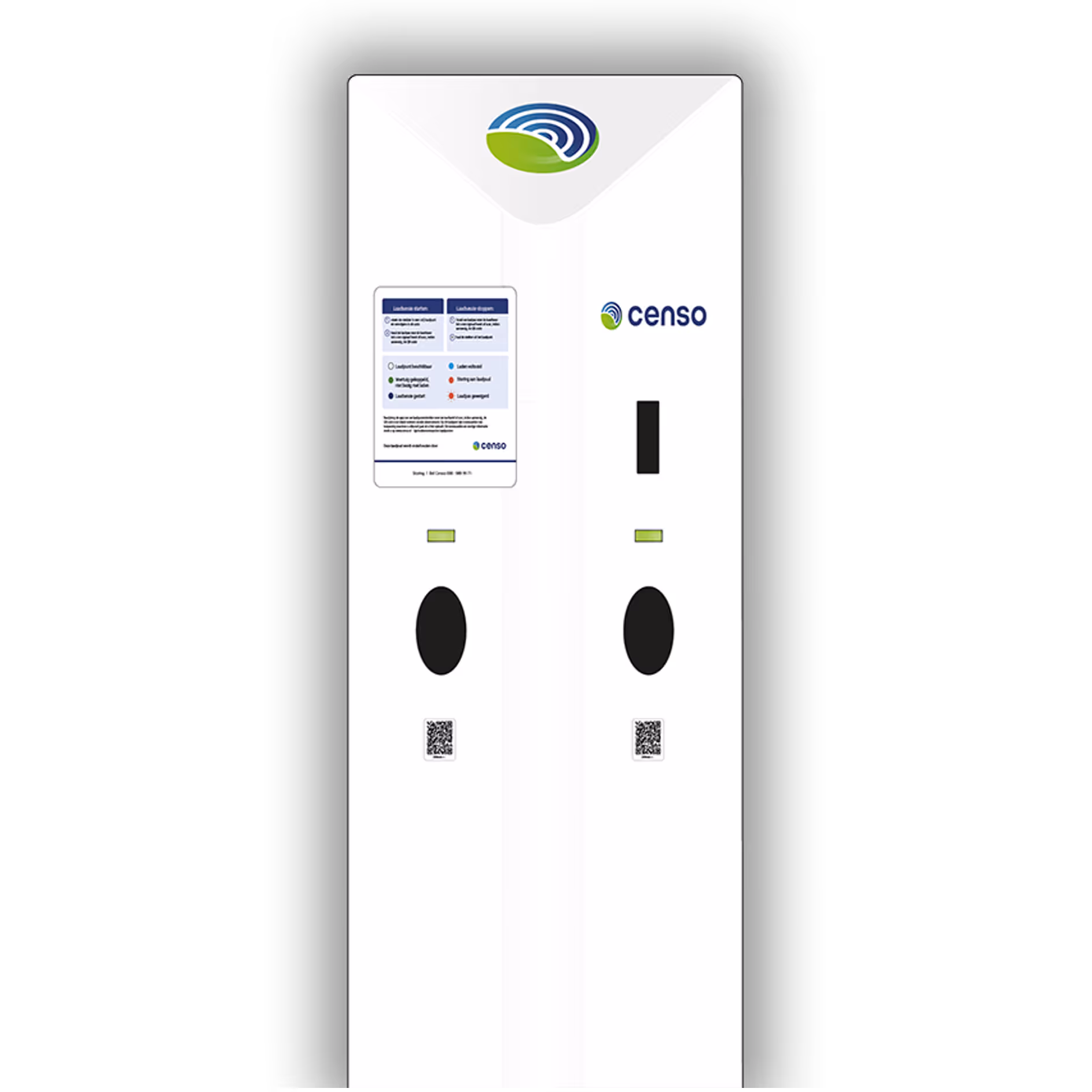

The colors of the LED light explained - eNovates Pro
This charging station has two charging points and a rectangular charging light is visible above each of the charging points. The color of the light changes when starting and stopping the charging session and during the charging session itself. The light also indicates when there is a malfunction.
- white: charging point is available
- green: vehicle connected and charging
- darker blue: charging session started
- lighter blue: charging session completed
- red: malfunction
- flashing red: charging card or charging key rejected

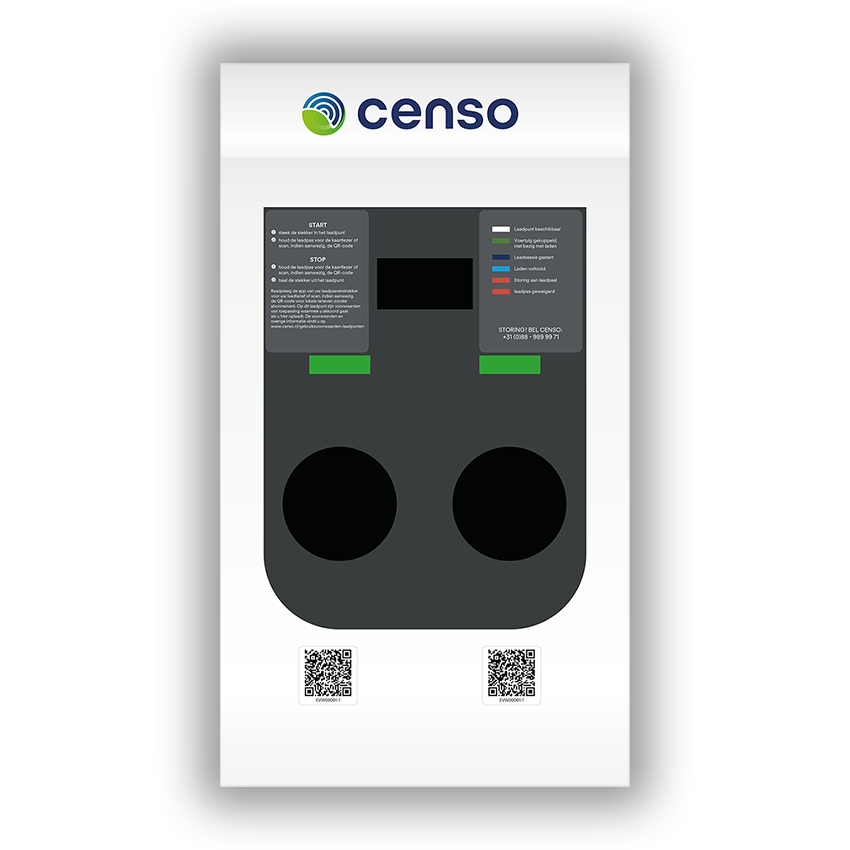

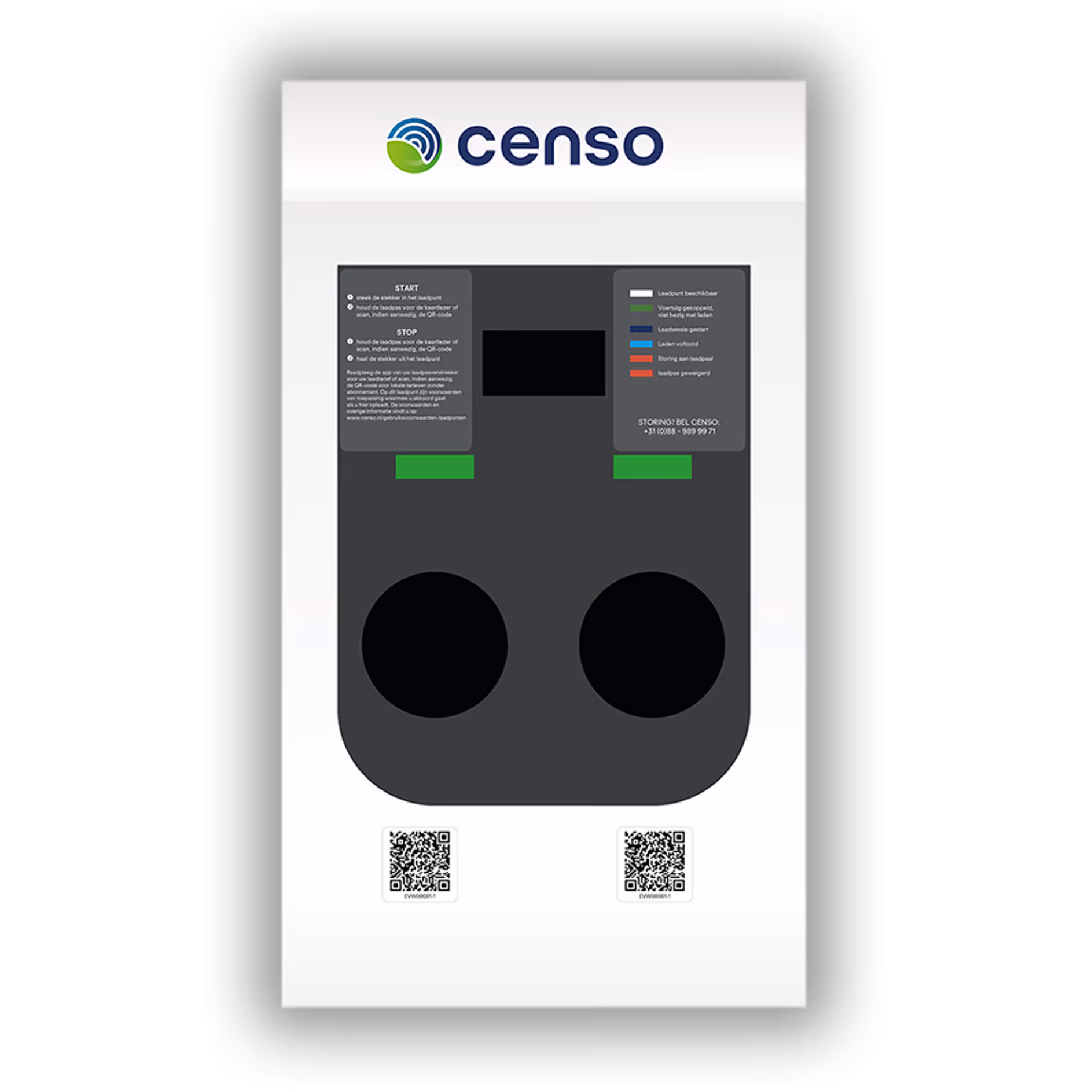

The colors of the LED light explained - Enovates DWB
This charging station has two charging points and a light is visible around the socket of each charging point. The color of the light changes when starting and stopping the charging session and during the charging session itself. The light also indicates when there is a malfunction.
- white: charging point is available
- green: vehicle connected
- darker blue: charging session started
- lighter blue: charging session completed
- red: malfunction
- flashing red: charging card or charging key rejected
The colors of the LED light explained - Enovates Wallbox
This charging station has one charging point and a light is visible around the socket of the charging point. The color of the light changes when starting and stopping the charging session and during the charging session itself. The light also indicates when there is a malfunction.
- white: charging point is available
- green: vehicle connected
- darker blue: charging session started
- lighter blue: charging session completed
- red: malfunction
- flashing red: charging card or charging key rejected
Do you experience any malfunction? You can call Censo 24/7: +31 (0)88 989 99 71
Charging rates and conditions
Consult the app of your charging card provider for your charging rate or scan, if present, the QR code for local rates and for payment of the charging session in the app that opens after scanning the QR code. Conditions apply to this charging point which you agree to when you charge here.
